AOG Current Built-In "L" Series Grill Parts Guide

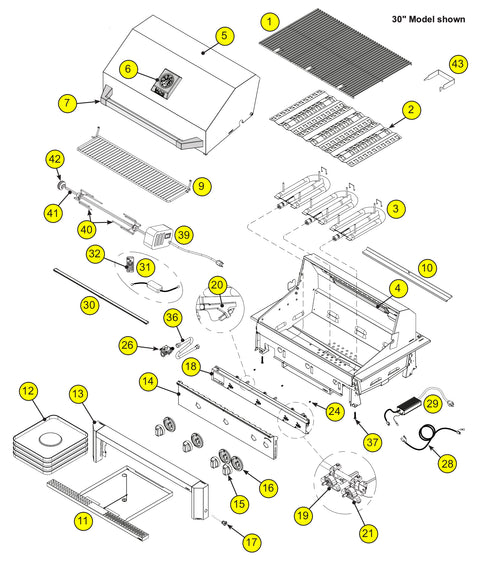

AOG PARTS GUIDE FOR BUILT-IN GAS GRILLS 24", 30" AND 36"
Click the listed part needed below and you will be
directed to the correct product page for the purpose of ordering that part.
- 1. Stainless Cooking Grid (Set of 2 or 3)
- 2. Vaporizer Panel Kit
- 3. Main Burner
- 4. Backburner *
- 5. Oven Lid w/ Thermometer (no handle)
- 6. Oven Lid Thermometer w/ Bezel (only)
- 7. Oven Lid Handle (only)
- 8. Oven Lid Spring Kit
- 9. Warming Rack
- 10. Wind Deflector
- 11. Drip Tray w/ Match holder
-
12. Drip Tray Liners (pack of 4)
- 13. Face Frame (w/ light switch cutout)
- 14. Front Face Panel w/ Backburner
- 15. Control Knob (L-series)
- 16. Control Knob Bezel (L-series)
-
18. Valve Manifold Channel Assy. w/ Wire Harness (NAT)
or Valve Manifold Channel Assy. w/ Wire Harness (LP) - 19. Main Burner Valve w/ Ignitor Assy.
- 20. Main Burner Igniter Assy. (only)
- 21. Backburner Valve
- 22. Backburner Ignitor Assy. †
- 23. Backburner Ignitor Gas Tube †
-
24. Main Burner Orifice, NAT (2 or 3)
or Main Burner Orifice, LP (2 or 3) -
25. Backburner Orifice, NAT †
or Backburner Orifice, LP † - 26. Convertible Regulator
- 27. Wire Harness Assy. †
- 28. Wire Harness Extension
- 29. Power Supply
- 30. LED Strip Assy.
- 31. RGB Reciever and Remote Control
- 32. Remote Control (only)
- 33. 12v / 10w Halogen Bulb †
- 34. Light Lens †
- 35. Lamp Assembly †
- 36. Flex Connector w/ Fittings
- 37. Support Adjustment Bolt (set of 2)
- 38. Built-in Grill Vinyl Protective Cover †
- 39. Stainless Steel Rotisserie Motor
- 40. Spit Prongs (set of 2)
- 41. Spit Rob 5/8" Hex
- 42. Handle Knob
- 43. Grid Lifter
- † Not Shown
